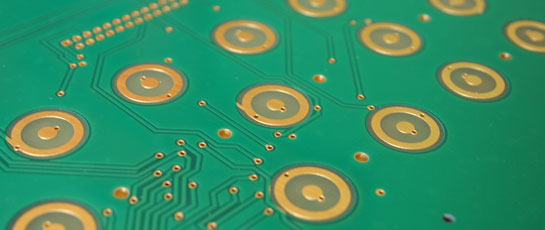

Specifications PCB Tactile
Life expectancy: 3 million operations
Operating voltage: 30V max
Operating current: 50mA max
Contact rating: 1 VA max
Contact bounce: 10ms max on make/ 20 on break
Contact resistance: 5 ohms typical, 50 ohms max
Insulation resistance: 10 megohms min
Dielectric strength: 250 VRMS min 50 Hertz
Operational/storage temp: -40°c +80°c
Relative humidity: 95%
